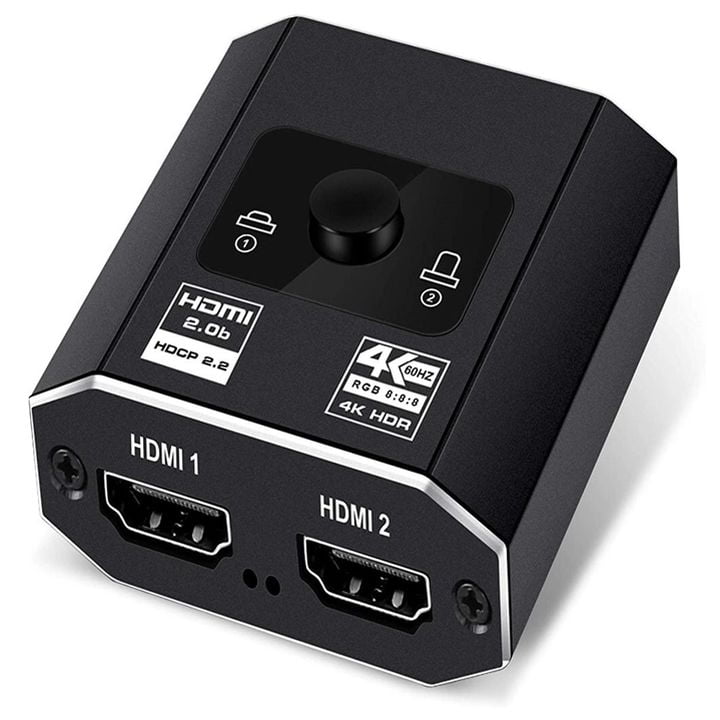

HDMI Bi Directional Switch 2IN->1OUT or 1IN->2OUT 4K HDCP2.2
Best Spec, Superior Quality – 3 Port HDMI Bi-Direction device can function as either a 2 Port Switch or Toggle between any 1 of 2 displays. Compact design.
This unit is the very latest specification and supports all versions up to and including HDMI v2.0 and DHCP2.2 pass-through ensuring it is both ‘future-proof’ and will work across all your latest tech.

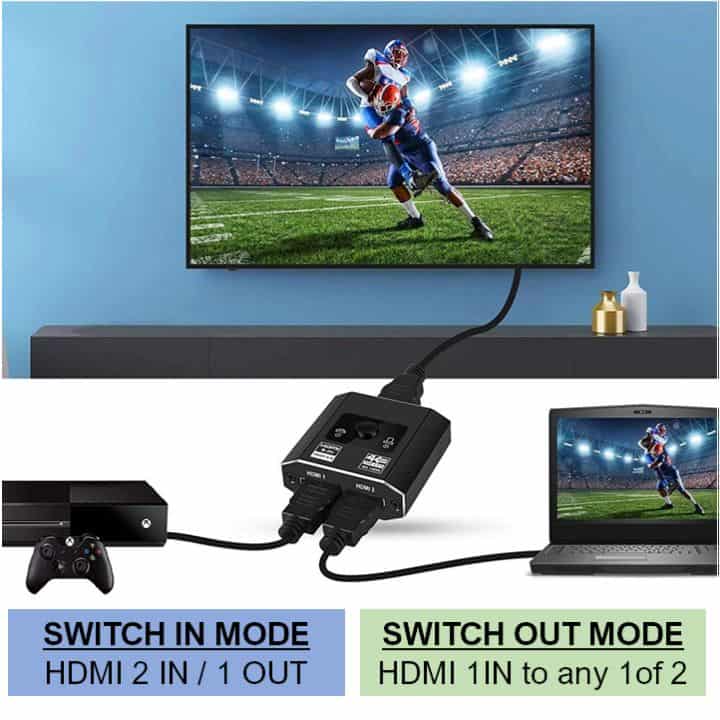

Unit will ‘auto-detect’ which mode to use depend on the HDMI source connection which will also provide power to the unit – see additional images for details.

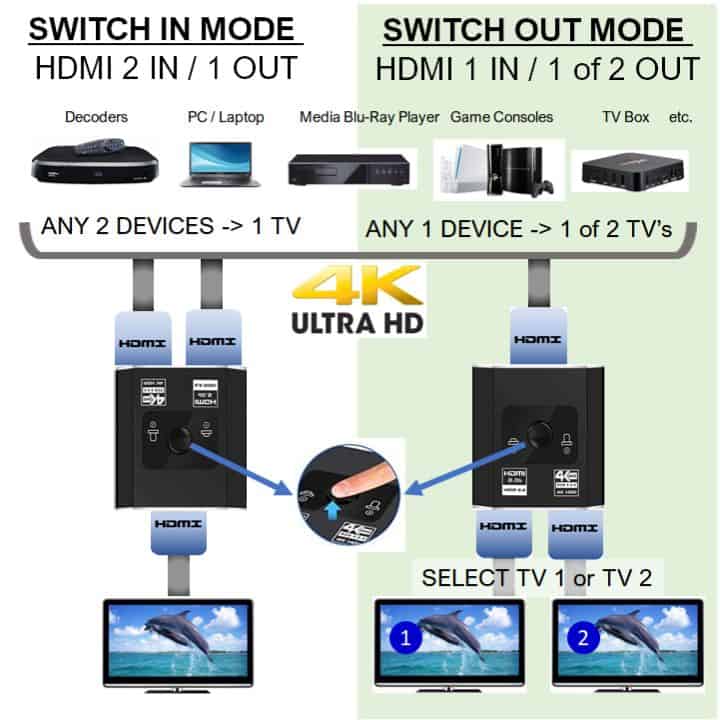

HDMI IN-Switch Mode: (2 Inputs/1 Output). Manual toggle between input 1 & 2 to 1 display.
Purpose, If you have 2x HDMI source devices (decoder, tv box, PC etc.) but your TV, monitor or projector only has 1 input ports available.
HDMI OUT-Switch Mode: (1 Input to any 1 of 2 Outputs). Manual toggle between output 1 & 2.
Purpose, Switch your HDMI source device (decoder, tv box, PC etc.) to any on of 2 displays. equal images. Often used for projectors, monitors or HDMI CAT extenders.
This unit is NOT A SPLITTER and cannot output to 2 identical screens simultaneously.
If you require multiple independent screens from 1 HDMI source search for ‘Multiple Display Expander Adaptor | 3 Separate Screens | USB C to 2 HDMI’.
Features
Supports HDMI 2.0 (similar devices will only support up to HDMI 1.4)
Supports HDCP 2.2 pass-through
Supports Long HDMI Cable: 10m Input & Output AWG26 HDMI standard cable
No External Power source needed:
Specifications
Power Consumption: 15mA (via HDMI source device cable)
Resolutions Supported: 3D, 2160p 4Kx2K UHD / 1080P / 1080i / 720P/ 576P / 576i / 480P / 480i
Device Dimensions: 43 x 50 x 20 (L x W x H) in mm
What’s in the box
1x HDMI Bi-Direction Switch
