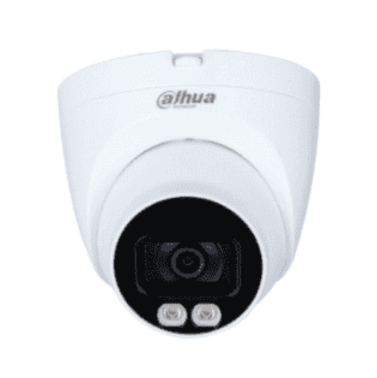

Dahua 40m 2MP Full-color HDCVI Eyeball Camera
Full-color starlight> 40m LED distance
Max. 30fps@1080P
CVI/CVBS/AHD/TVI switchable
Built-in mic(-A)
3.6mm fixed lens (2.8mm Optional)
IP67, 12V 30% DC
Technical Specification
Camera
Image Sensor 1/2.8 inch CMOS
Effective Pixels 1920 (H) 1080 (V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s-1/100000 s
NTSC: 1/30 s-1/100000 s
S/N Ratio >65 dB
Minimum Illumination 0.01 Lux/F1.6, 0 Lux white light on
Illumination Distance Distance up to 40 m (131.23 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 2
Pan/Tilt/Rotation Range
Pan: 0 -360
Tilt: 0 -78
Rotation: 0 -360
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.6
Field of View
2.8 mm: 126.2 106 56.5
(diagonal horizontal vertical);
3.6 mm: 103.6 86.9 46.3
(diagonal horizontal vertical)
Iris Type Fixed iris
Close Focus Distance 2.8 mm: 0.7 m (2.29 ft);
3.6 mm: 1.2 m (3.94 ft)
DORI
Distance
Lens Detect Observe Recognize Identify
2.8 mm 43.9 m
(144.02 ft)
17.5 m
(57.41 ft)
8.8 m
(28.87 ft)
4.4 m
(14.43 ft)
3.6 mm 55.2 m
(181.1 ft)
22.1 m
(72.5 ft)
11.0 m
(36.1 ft)
5.5 m
(18.0 ft)
Video
Frame Rate
CVI:
PAL: 1080p@25 fps; 720p@25 fps;
NTSC: 1080p@30 fps; 720p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Resolution 1080p (1920 1080); 720p (1280 720); 960H (960
576/960 480)
BLC BLC/DWDR
WDR DWDR
What's in the box
1 x Dahua 2MP Full-color HDCVI Eyeball Camera
1 x User Guide
