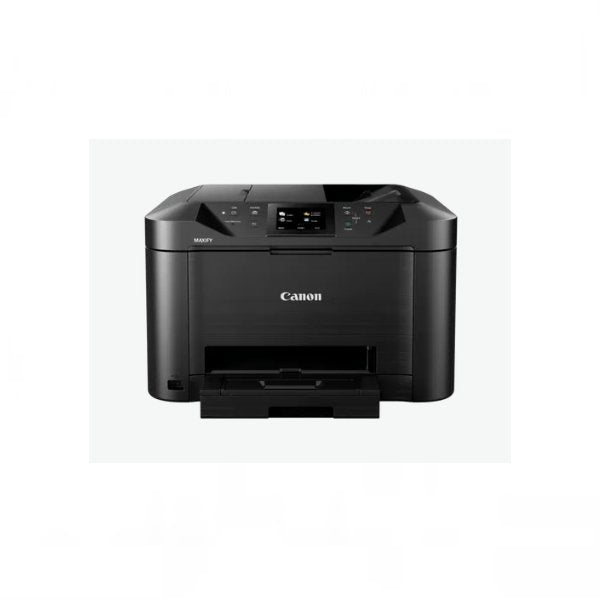

Canon MAXIFY MB5140 A4 Colour Inkjet Printer
SPECIFICATIONS
Specifications in detail
General Specifications
Functions
Print, Copy, Scan, Fax, Wi-Fi, Ethernet + Cloud Link
Printer Specifications
Print Resolution
Print Margins (min.)
Top: 3mm, Bottom: 5mm, Left & Right: 3.4mm
Print Technology
Inkjet, FINE print head
Mono Print Speed
Colour Print Speed
First-Print-Out Time
Mono: 6 sec (ready) / 10 sec (sleep)
Colour: 7 sec (ready) / 12 sec (sleep)
Two Sided Printing
Automatic (A4, LTR plain paper)
Automatic Document Feeder (ADF)
Up to 50-sheets
Cartridges and Yields
Standard Ink Cartridges
Dual Resistant High Density ink
4 ink tanks (Black, Cyan, Magenta, Yellow)
Optional XL Ink Cartridges
PGI-2400XL BK (2500 pages)¹
PGI-2400XL C (1755 pages)¹
PGI-2400XL M (1295 pages)¹
PGI-2400XL Y (1520 pages)¹
Colour ink tanks (CMY) average yield: 1500 pages¹
Paper Support
Paper Types
Plain Paper
Envelopes (DL, COM10, C5, Monarch)
Canon High Resolution Paper (HR-101N)
Canon Matte (MP-101)
Canon Pro Luster (LU-101)
Canon Plus Semi-gloss (SG-201)
Canon Plus Glossy II (PP-201)
Canon Glossy Everyday Use (GP-501)
Maximum Paper Input
Cassette: 250 sheets of plain paper
Paper Sizes
Plain paper: A4, A5, B5, LTR, LGL
Photo paper: A4, LTR, 20x25cm, 13x18cm, 10x15cm
Custom sizes: Width 89-215.9 mm, Length 127-355.6 mm
Paper Weight
Plain paper: 64 - 105 g/m²
Canon photo paper up to 275 g/m²
Scanner Specifications
Scanner Type
Flatbed, ADF
2x CIS colour scanner
Available (single pass)
Scan Speed
Scanner Resolution (Optical)
Up to 1200 x 1200 dpi¹
Scanning Depth (Input / Output)
Colour: 48 bit / 24 bit
Greyscale: 16 bit / 8 bit
Maximum Document Size
Flatbed: A4, LTR (216x297mm)
ADF: A4, LTR, LGL
Copier Specifications
Copy Speed
Copy Quality
Multiple Copy
Up to 99 pages
Copy Functions
Frame Erase, Collate, 2-on-1, 4-on-1
Copy Zoom
Fax Specifications
Fax Type
Super G3 / Colour
Fax Resolution
Mono: up to 300 x 300dpi
Colour: 200 x 200 dpi
Fax Speed
Mono: approx. 3 sec. (33.6kbps)¹
Colour: approx. 1 min. (33.6kbps)¹
Fax Memory
Up to 250 pages
Coded Speed Dialing
Max. 100 locations
Group Dial
Max. 99 locations
Interface
Display Type & Size
8.8cm colour touch screen
Connectivity
Wired LAN
Hi-Speed USB 2.0
Ethernet 10/100Mbps (auto switchable)
USB flash memory port (A type)
Wireless LAN
Wi-Fi IEEE802.11 b/g/n¹
Wireless LAN Frequency Band: 2.4GHz
Access Point Mode
Please refer to the user manual for instructions on how to activate/deactivate the wireless LAN.
Print Applications & Methods
Software
Supported Operating Systems
Chrome OS
Windows 10 / 8.1 / 8 / 7 / 7 SP1 / Vista SP2
Windows Server 2008 / 2008 R2 / 2012 / 2012 R2
Mac OS X v10.8.5 or later
Supported Mobile Systems
iOS, Android, Windows RT, Windows 10 Mobile
Minimum System Requirements
Windows: Internet Explorer 8, internet connection or CD-ROM
Mac: Safari 5 and internet connection
Display: 1024x768 or higher
Software Included
Printer driver and fax driver
Quick Utility Toolbox
IJ Network Device Setup Utility
Easy-WebPrint EX
Physical Features
Weight
11.4kg
Dimensions (W x D x H)
463 x 394 x 291 mm
463 x 459 x 291 mm (paper installed)
Acoustic Noise Levels
Approx. 56 dB(A)¹
Recommended Operating Environment
Temperature: 15-30°C
Humidity: 10-80%RH (no dew condensation)
Power Source
AC 100-240V, 50/60Hz
Duty Cycle
up to 30,000 pages¹
Power Consumption
Standby (scanning lamp is off)
USB connection to PC : approx. 0.9 W
Standby (all ports connected, scanning lamp is off) : approx. 1.7 W
Time to enter Standby mode : approx. 7 mins
OFF : approx. 0.2 W
Copying (USB connection to PC): approx. 25 W¹
Typical Electricity Consumption
0.16 kWh¹
Recommended Print Volume
250-1500 pages / month
